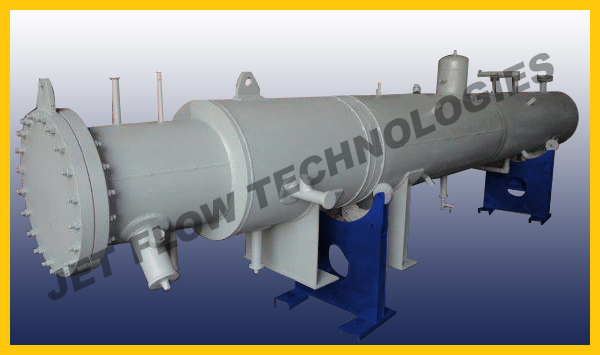

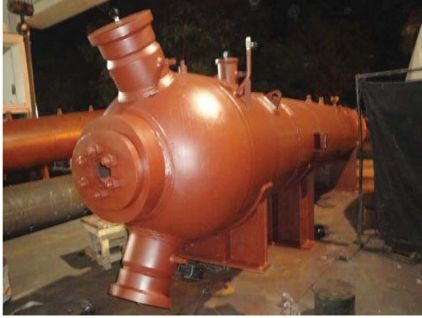

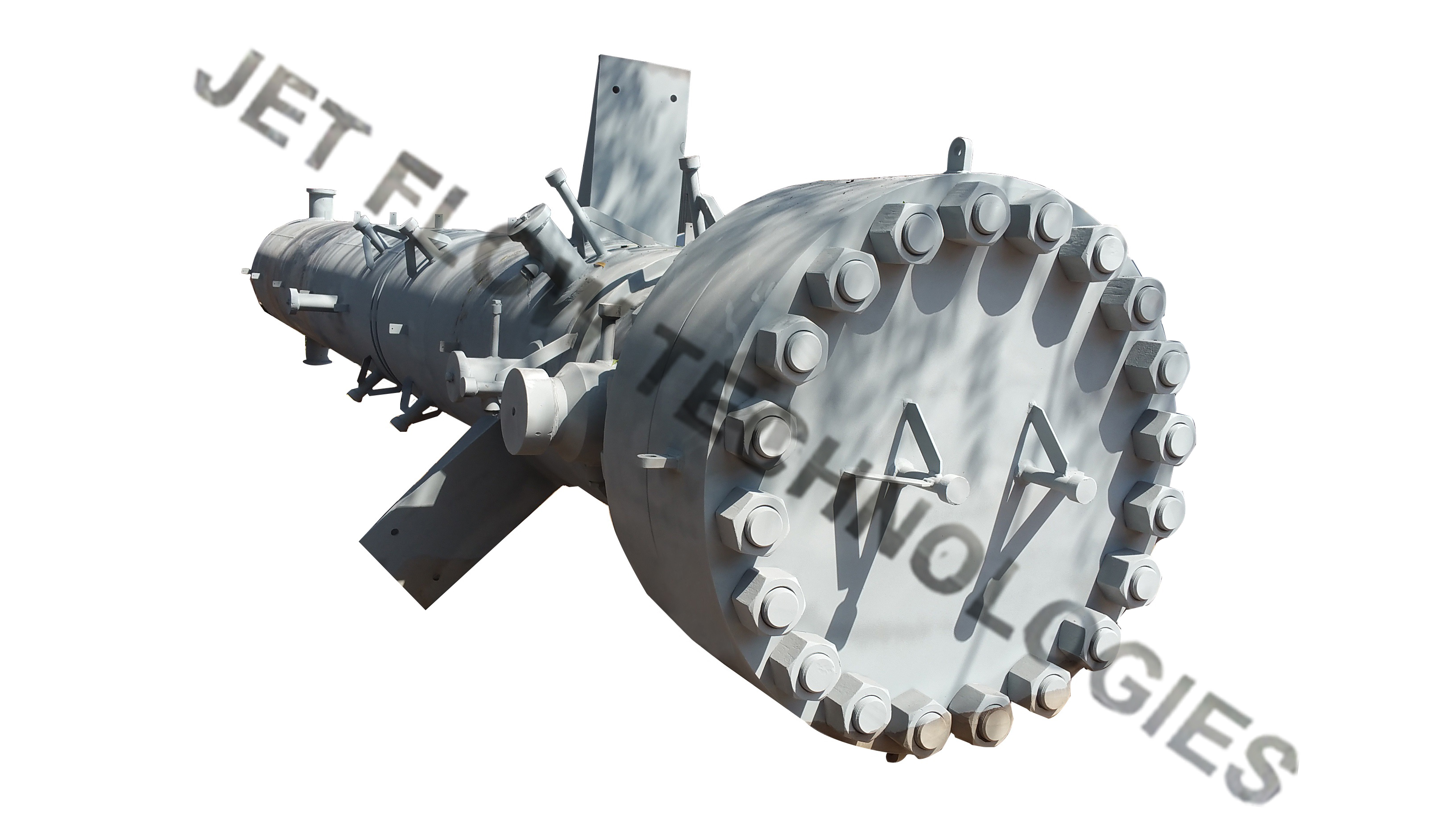

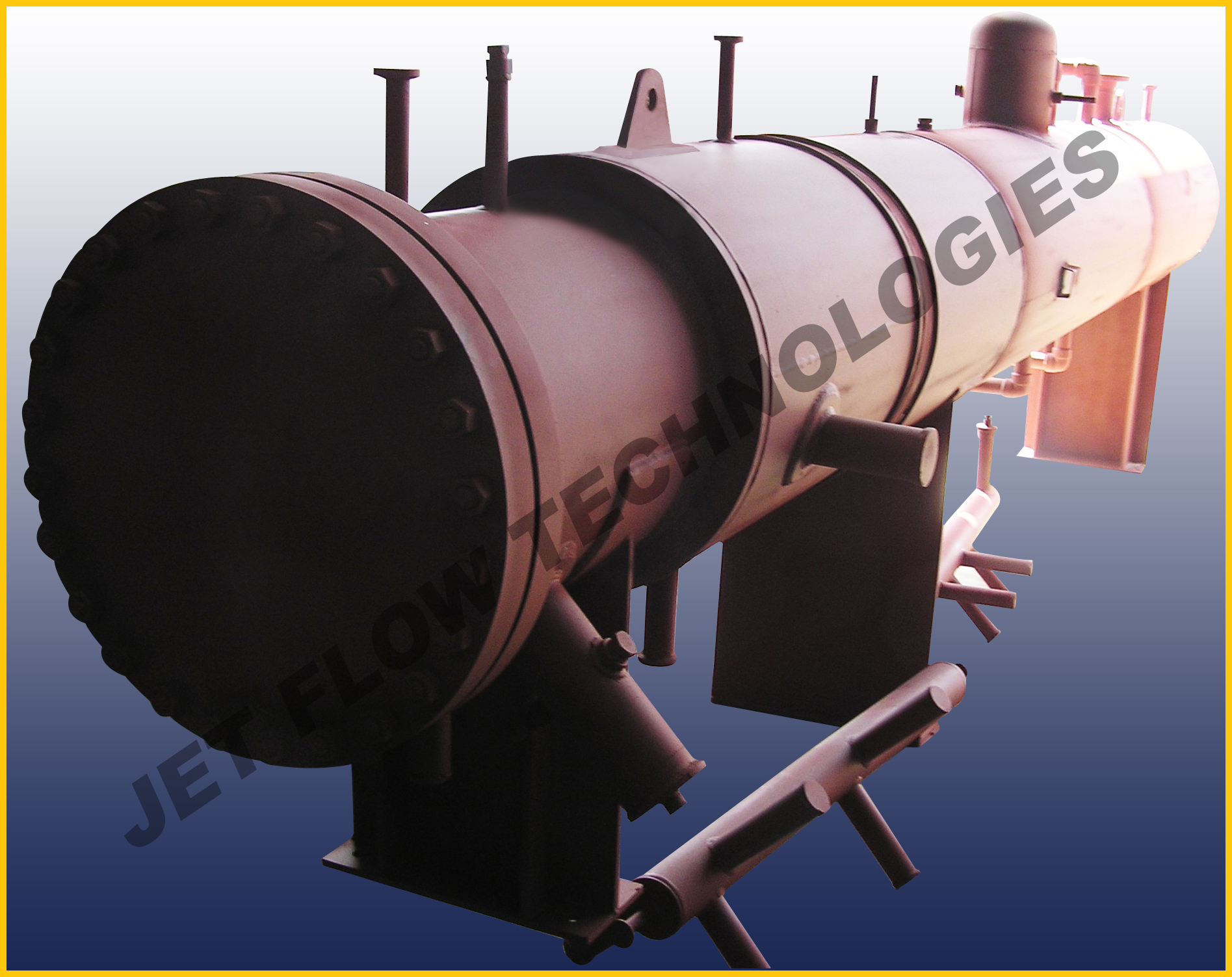

Feedwater Heater
The needs of the power generation industry include year-in and year-out reliability, optimum performance for maximum efficiency, and absolute on-time delivery to meet plant outage schedules.
All of the Jet Flow Feed
Water Heaters are designed in accordance with HEI standards, TEMA and ASME codes. Jet Flow uses state-of-the art computer programs to perform the thermalhydraulic and mechanical design of each Feed Water Heater we fabricate.
Jet
Flow designs and manufactures both Low Pressure (LP) and High Pressure (HP) feed water heaters which may be installed either vertically or horizontally, depending on the plant design requirements.
Each Jet Flow Feed Water Heater will contain from one to three separate heat transfer areas of zones including the Condensing, De-superheating and Sub-cooling zones. Our heaters can be provided with multiple zones within the shell side:
- Condensing Zone : Included in all heaters,steam is condensedin this zone and non-condensable gases are removed.
- Drain Cooling Zone : Reduces temperature of drains leaving the condensing zone to below the saturation temperature. Jet Flow is able to provide both fullflow and partial flow drain cooling zones to meet specific plant requirements. DC zones can be applied in any horizontal or verticle heater as needed to meet plant requirements.
- Desuperheater Zone : Floating design and shielding at the tubesheet minimise thermal stresses. All operating cases are analysed to ensure wet wall conditions are prevented. DSH zones can be applied any horizontal or verticle heater as needed to meet plant requirements.
- Jet Flow’s engineers are always available to assist you in determining those design parameters and how they will impact performance in your power plant.
- Jet Flow understand the unique needs of the power generation industry and provides it feed water heaters that withstand years of rigorous service.
Jet Flow Feed Water Heaters are designed for specific thermal conditions and manufactured for a singular purpose. Whether it be sophisticated designs involving extreme superheat, abnormal flow conditions or dissipation of high
energy fluids.
In addition, Jet Flow provides innovative and practical concepts to ensure peak heater performance from installation to testing through full or part load operation. We offer a multitude of design configuration
for de-super heater and drain cooler zones as well as the latest channel closure techniques.
All shell & tube heat exchangers, irrespective of the type of service for which they were designed, must withstand
severe service conditions. The service life of feed water heaters, however, is one of the toughest because of the longevity and reliability factors inherent in power plant equipment designs. Jet Flow thorough understanding
of these factors enhances its ability to communicate clearly with power design engineers. Jet Flow designs enable power engineers to anticipate maximum efficiency from the turbine extraction steam in preheating the boiler
feed water.
Scope offering:
- Jet Flow low pressure feed water heaters can be provided in any orientation and contain multiple shell side zones as required to meet the need of the specific plant application. Standard tube material for Jet Flow Feed water heaters is corrosion and erosion resistant austenitic stainless steel. Tubes are expanded in the tubesheet as a standard, but can be welded when required.
- Jet Flow feedwater heaters are manufactured according to the strict quality standards. Testing and certification by the responsible authorities including IBR are performed in the production facility.
- Along with the heaters, Safety Relief Valves, Thermal Relief Valve, Level Instruments and Gauges can be supplied.
